Product color: black
LCD brand: BOE
Black border size: 11mm
anti-glare glass: 3.0mm Foggy AG tempered glass
Capacitive materials: CenTouch
Front frame material: Integrated Aluminum Profile
body material: Galvanized sheet
Chamfering degree: R6°
Packaging Material: Gravity cardboard box
External dimensions: L1456.9mm*H831.7mm*T59.8mm(pylonsT:10mm)
Packaging size: L1575mm*H960mm*T160mm
VFSA: L400mm*H300mm
Net gross weight: 40/42kg
Wall mounted bracket: Horizontal and vertical universal,pylonsT:10mm
Installation method: Wall mounted/suspended/embedded
Display parameters
LCD size: 65 inch
Backlight type: ELED
Resolution : 3840×2160 FHD
Peak brightness: 500cd/㎡
Display Area: 1428.48(W)×803.52(H) mm
viewing angle: Full perspective
Contrast ratio: 4500:1 (Typ.) (transmission)
response time: 6 (Typ.)(G to G) ms
display mode: ADS often displays in black
surface treatment: Foggy surface (Haze 1%)，Hard coating (3H)
Frame frequency: 60Hz
Touch parameters
Touch Type: Projected capacitive screen
Controller: ILI2322P.C3.P1.V1
Channel: RX112*TX64
Power: 5V
Communication: USB Serial port
Number of Touch point: 10 points
O.S.: Windows/Android/Linux
Transparency ：≧85%
anti-glare glass：3.0mmFoggy AG tempered glass
Surface Hardness：above 7H
work environment: -20°C~+70°C，≤90%RH
Storage environment: -30°C~+80°C，≤90%RH
Display motherboard parameters
Input signal: DP×1;HDMI×1;RS485×1;Audio×1;USB Touch×1
output signal: OPS×1;LVDS×1;USB Touch×1;USB PC×1;Horn×1
Supports screen scaling mode, automatic signal recognition, automatic temperature control, no CPU or system hardware architecture, with USB power on upgrade function.
Electrical performance:
Power brand: Megmeet
Applicable scenarios: Indoor use
input voltage: AC110-220V
standby power: ≦1W
Rated power: ≦210W
Storage environment: ‐5℃~60℃/10%RH~90%RH
work environment: ‐0℃~55℃/10%RH~90%RH
service life: ≧100000Hr
Packing List：complete machine；Wall mounted bracket；power cord；Remote control

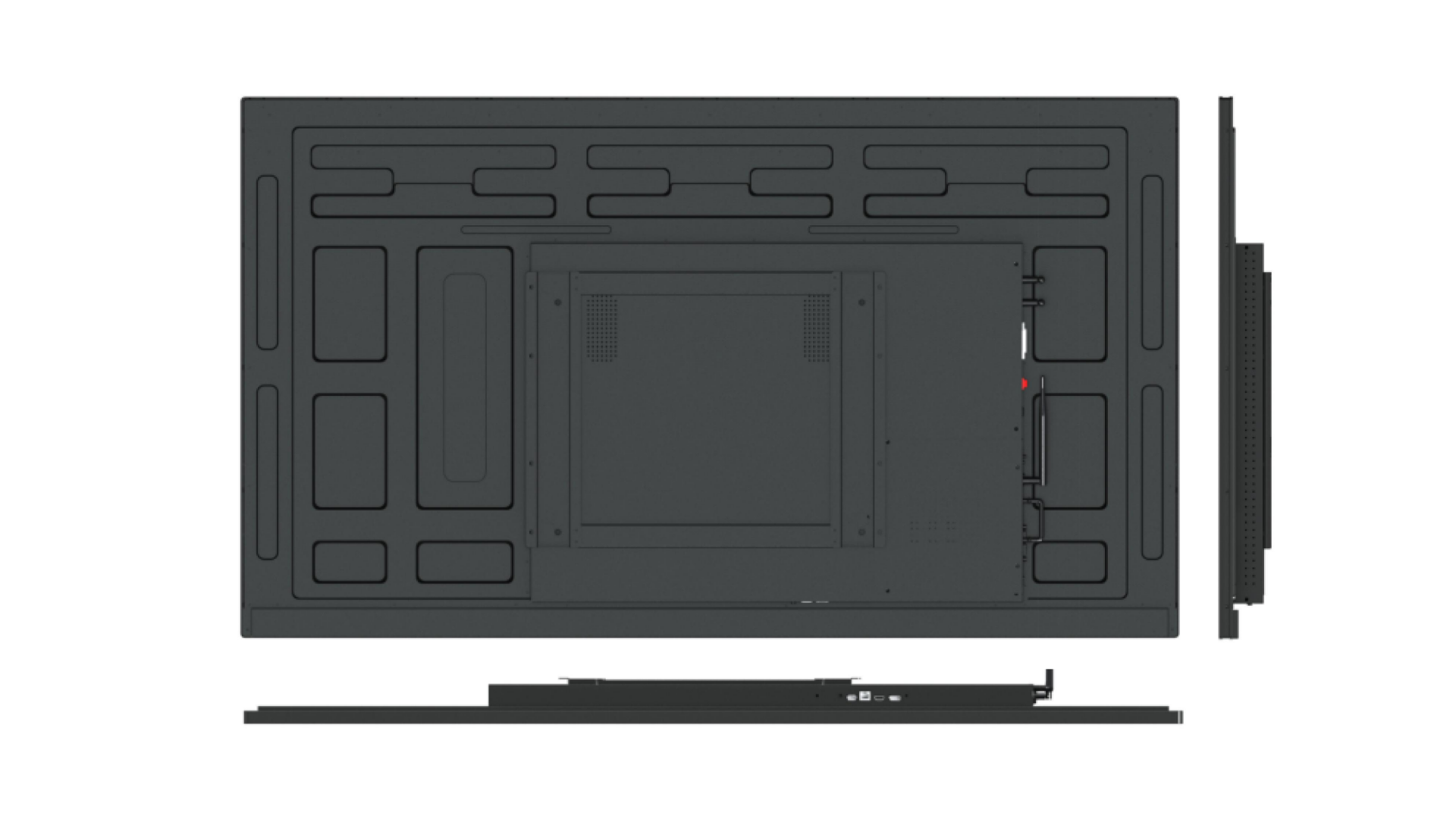

Product drawings
